With the plastic bottles and containers market set to expand from USD 166.78 billion (2019) to USD 224.97 billion (by 2026), bottle producers are focusing on one key goal: producing more efficiently.

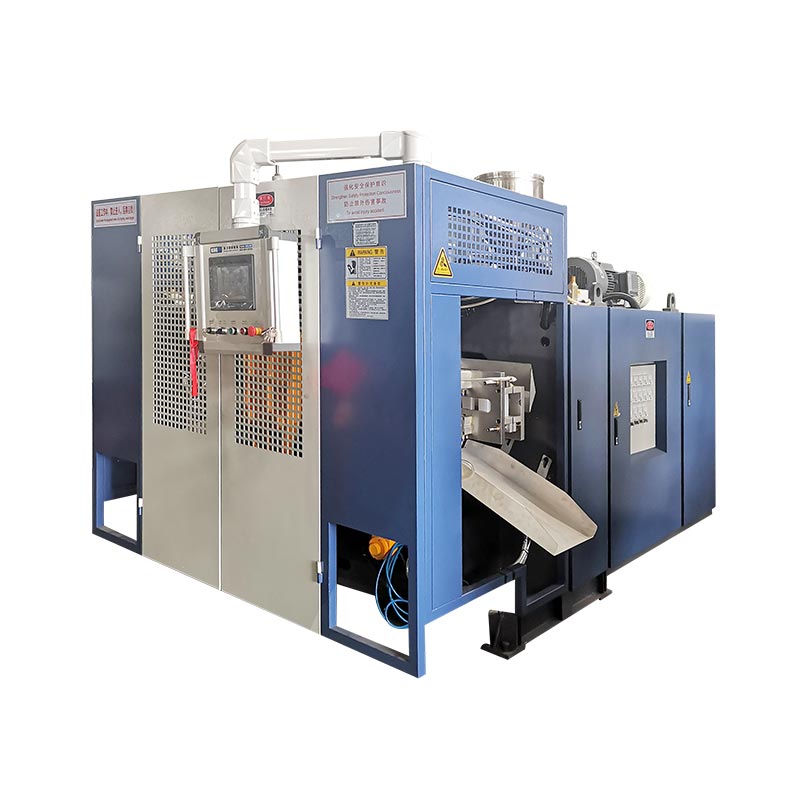

A multi-head blow molding machine extrudes several parisons at one molding event; a multi-cavity blow molding machine forms several parts in one mold close. For a conventional small-bottle layout, die outlets and cavities are commonly designed as a matched arrangement, but the words describe different components. More heads can raise parts per event only when outlet spacing, bottle diameter, mold dimensions, extrusion capacity, cooling and downstream equipment all support the design.

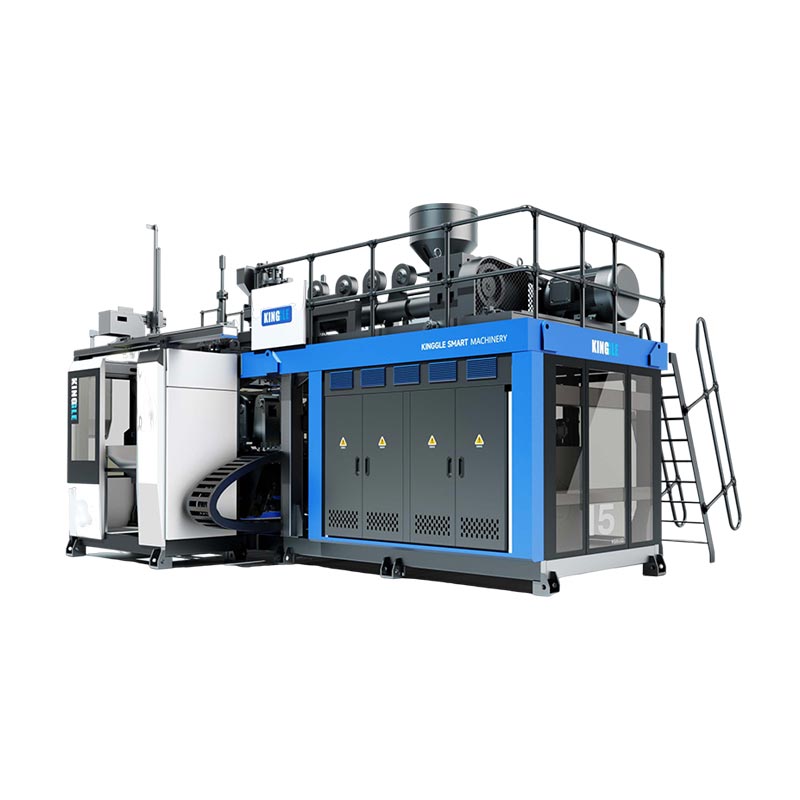

Choose a single-station blow molding machine when one mold position can meet verified demand and simplicity, changeover frequency, floor space or mold investment matters more than maximum theoretical output. Choose a double-station blow molding machine when repeat demand can keep two alternating mold stations productive and the extruder, die head, cooling system and downstream equipment can support the faster sequence. Compare good parts per hour with your actual bottle and material—not the dry-cycle figure alone.

Do not correct a blow molding defect from appearance alone. Contain the suspect parts, record the first failing cycle and compare the process with an approved baseline. Decide whether the fault follows one side, one cavity, one mold, one resin lot or the entire machine. Check utilities, actual temperatures, parison behavior, mold closing, blow air and cooling before changing a recipe. Change one variable at a time, mold enough cycles to reach a stable condition, and verify the result with part weight, wall measurements and the required functional test.

Good extrusion blow molding mold design begins with the finished part and acceptance tests. The tool designer then sets the parting line, pinch-off and flash pockets; positions vents and cooling circuits; defines neck and blow-pin interfaces; selects inserts and mold material; and checks mold width, height, thickness, opening and clamp requirements against the machine. Freeze the mold only after the machine supplier, mold maker and buyer approve the same drawing and trial conditions.

Build the plan around the actual machine manual and production conditions. Inspect safety systems, leaks, oil level and temperature, air and water conditions, extrusion stability, tooling, lubrication, electrical cabinets, sensors and alarm history. Record trends and plan corrective work before a small change becomes unplanned downtime.
