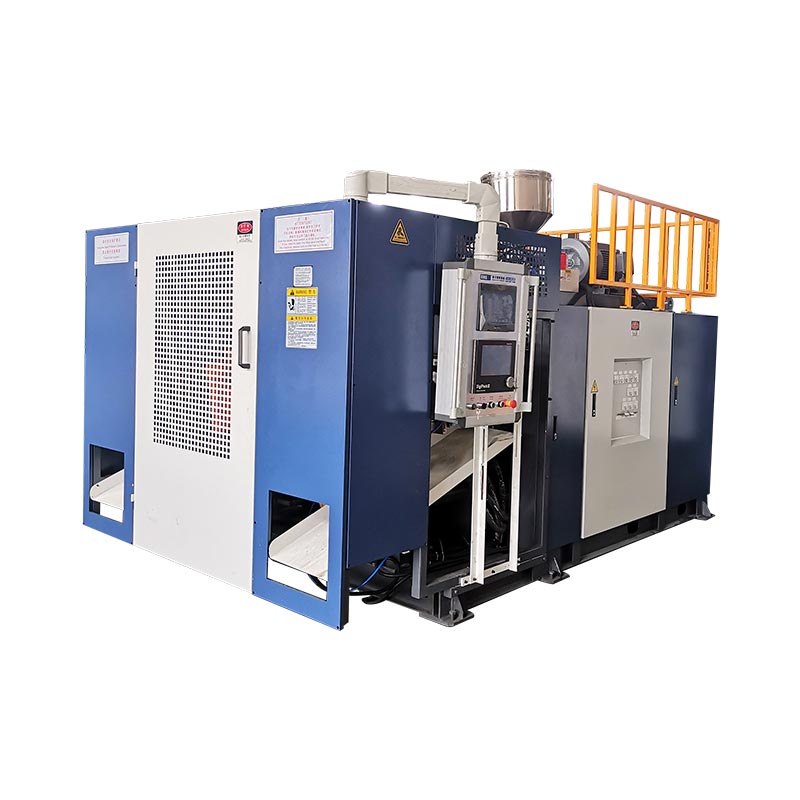

5L Single Station Blow Molding Machine

Model:KGB5L

Experience the flexibility and efficiency of our single-station continuous blow molding machine. Designed for up to 5L containers, this 5L Single Station Blow Molding Machine offers customizable configurations, including a dedicated 2 cavity blow moulding machine option, to meet your specific production needs.

Volume : 5LWeight : 3.0T

Send Inquiry

Product Description Specification Application

Whether you require a dedicated 5L Single Station Blow Molding Machine setup or need to adapt to changing market demands, this machine provides unmatched versatility and efficiency. Contact us today to explore our competitive pricing and discover how this machine can elevate your production capabilities.

Features and Advantages

● single station translational mold shifting mechanism, equipped with a precision buffer throttle valve to ensure smooth and efficient mold shifting operations.
● The die head is designed with a centralized feeding system, optimizing material distribution for enhanced product quality.
● The advanced electronic control system is powered by Mitsubishi PLC, and comes with independent manual buttons, allowing operators to make quick and accurate corrections and adjustments with ease.
● With a maximum product volume capacity of 5L, it stands as the top choice for low-volume production of containers ranging from 2L to 5L.
● In terms of product characteristics, it offers versatile options including single-layer, double-layer, three-layer structures, as well as transparent variants to meet diverse market demands.
● The hydraulic system features a differential design, delivering high efficiency and rapid response speeds, significantly boosting overall production efficiency.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB5L
Specification
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR
3	Machine Dimension(L×W×H)	3.1M x2.2 M x2.5 M
4	Machine weight	3.0 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MM x 450 MM
3	Platen openingstroke	188 MM -538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM - 310 MM
Power
1	Servooil pump motor power	15KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	60 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	55 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	15 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	Maxdie-pin diameter	150 MM
4	2Center distance of double die head	150-180MM
5	2MTMax die-pindiameter	80MM
