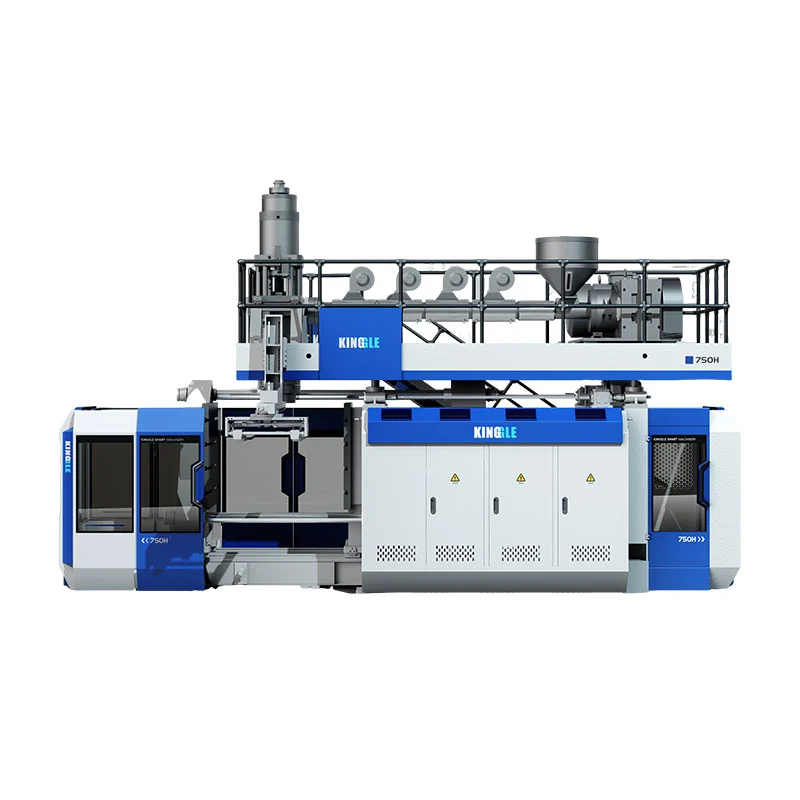

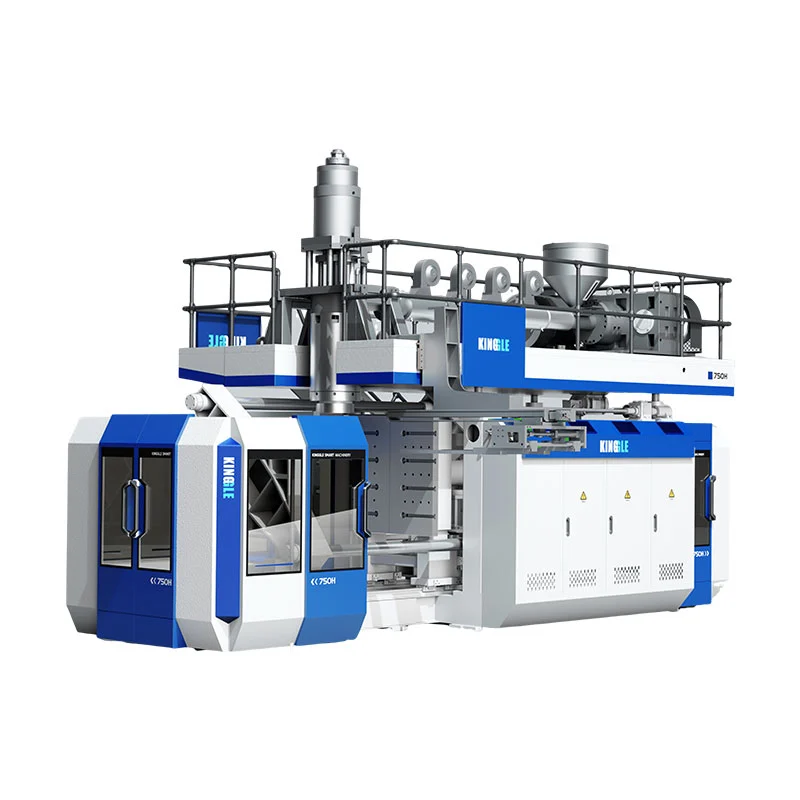

60L Accumulate Blow Molding Machine

Model:KGB90A

This fixed opening and closing blow molding machine, featuring double pull rod synchronous clamping and oil cylinder direct pressure locking mold, delivers high performance and efficiency. Equipped with a Hydralic servo system for fast response and energy savings, this 60L Accumulate Blow Molding Machine excels in producing a wide range of products, from smaller containers to larger volumes.

Volume : 60LWeight : 14T

Send Inquiry

Product Description Specification Application

The standard KGB90A model, a leading accumulator head blow molding machine, includes a MOOG 100 thickness controller, robot arm, and bottom blowing system, enhancing productivity and product quality. This 60L Accumulate Blow Molding Machine is ideal for various applications, including chemical drum blow molding machine solutions, plastic extrusion blow moulding machine processes, and the production of chemical packaging barrels, stacking buckets, outdoor water tanks, car tanks, toys, auto parts, toolboxes, and traffic barriers.

Features and Advantages

This model is a fixed mold opening and closing type, using a double tie rod synchronous mold closing mechanism, and the oil cylinder direct pressure clamping
● Storage cylinder die head series
● Maximum volume 60L
● Suitable for chemical packaging barrels, large toys, ABS car tailfins, etc.
● Using unique technology, mold clamping pressurization system, large clamping force, fast mold clamping speed, short product cycle

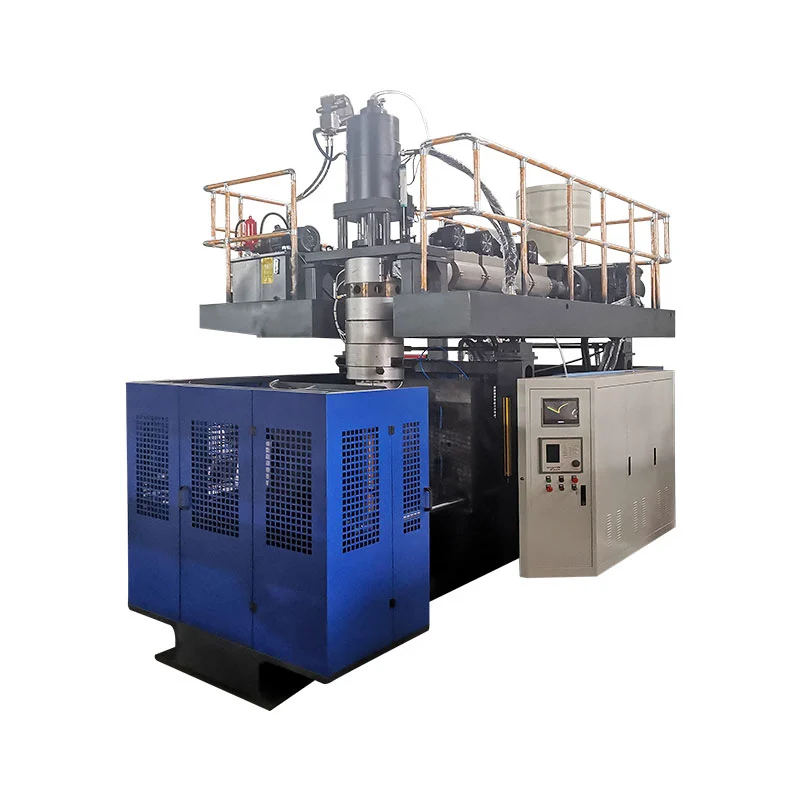

60L accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS...	Fixed open- closing type Mold closing oil cylinder(single cylinder)
Serial number	Material PE、PP、ABS...	Machine model:KGB90A
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

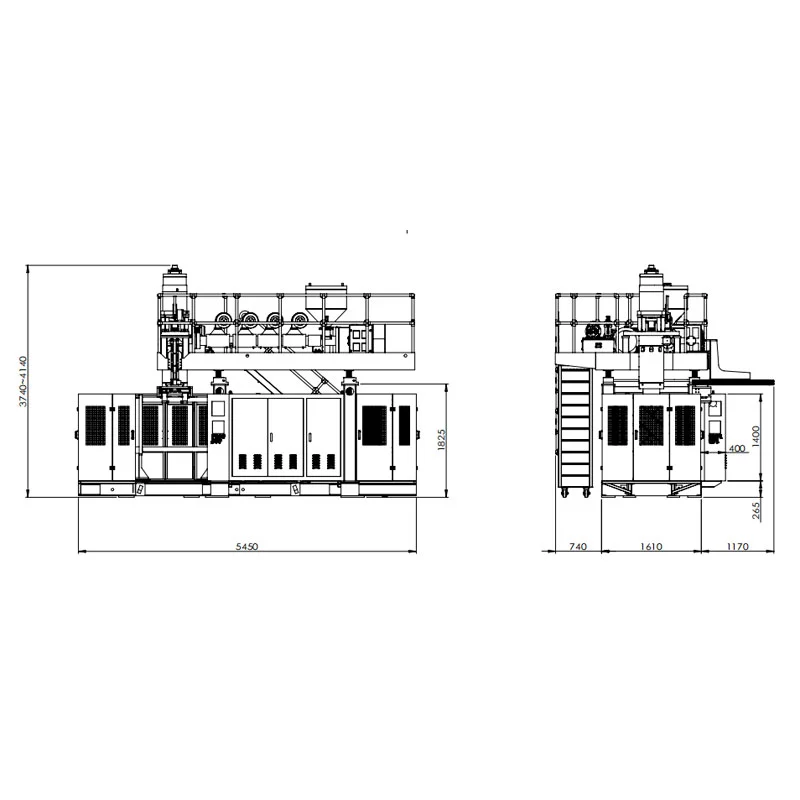

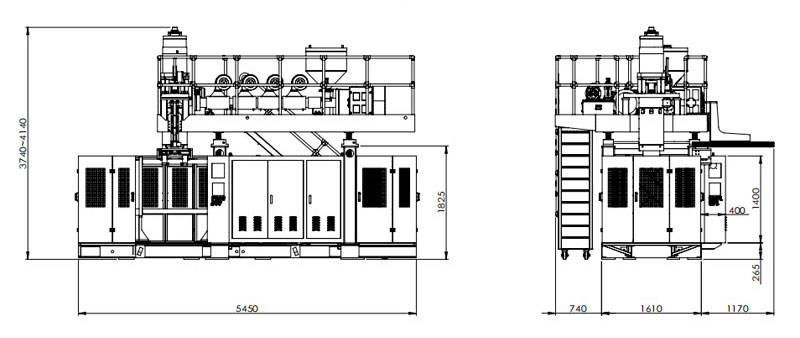

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	14 T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen opening stroke	450 MM-1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM x 980 MM
6	Mold thickness	460 MM-550 MM
Power
1	Servo oil pump motor power	18.5 KW
2	Servopump displacement	150 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW-45 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr-160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fan power	0.5 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Max die-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
