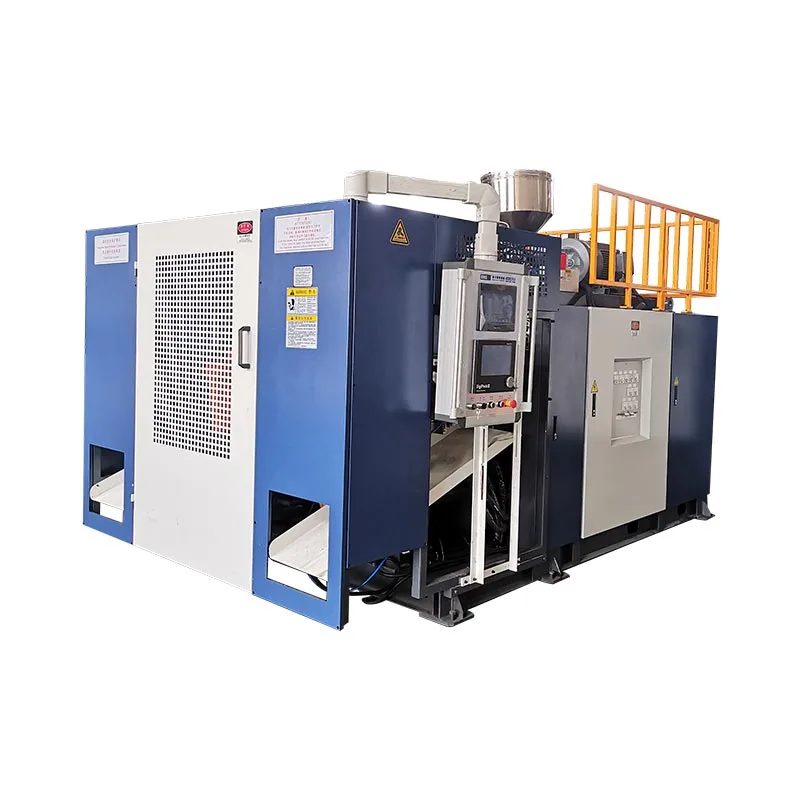

5L Double Station Blow Molding Machine

Model:KGB5D

Maximize your production with our versatile 5l double station blow molding machine. This high-performance machine offers flexible configurations, including a 2, 3, or 4 multi-die head setup, to accommodate a wide range of container sizes.

Volume : 5LWeight : 5.2T

Send Inquiry

Product Description Specification Application

From small-volume bottles to large 5L containers, this 5l double station blow molding machine ensures efficient production and consistent quality. Ideal for various applications, including laundry detergent package blow molding machine solutions, it delivers exceptional output and maximizes your return on investment.

Features and Advantages

● Double-station translational mold shifting, using buffer throttle valve for mold shifting, efficient and stable
● The die head adopts center feeding form
● The electronic control system adopts Mitsubishi PLC control, and independent manual buttons facilitate operator correction and adjustment.
● The maximum product volume is 5L, which is the preferred blow molding equipment for mass production of less than 2-5L.
● According to characteristics, it can be divided into single layer, double layer, three layer, transparent line, etc.
● The hydraulic system adopts differential design, high efficiency and fast speed

Specifications

Serial number	Material PE、PP、PVC、PA...	Mold-moving series
Serial number	Material PE、PP、PVC、PA...	Machine model:KGB5D
Specifications
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR x2 PC/HR
3	Machine Dimension(L×W×H)	3.2 M×2.2 M×2.5 M
4	Machine weight	5.2 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MMx450 MM
3	Platen openingstroke	188 MM-538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM-310 MM
Power
1	Servooil pump motor power	15 KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.7 M³/MIN
5	Cooling water pressure	0.2 Mpa-0.3 Mpa
6	Water consumption	80 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	70 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	80 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	22 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	1MT Max die-pin diameter	150 MM
4	2 Center distance of double die head	150 MM-180 MM
5	2MT Max die-pindiameter	80 MM
