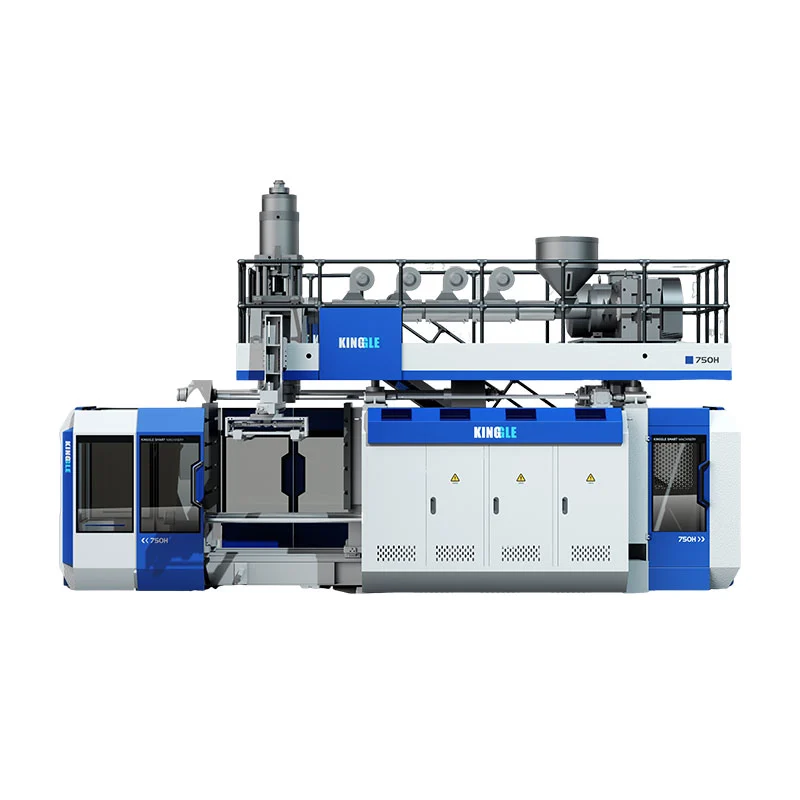

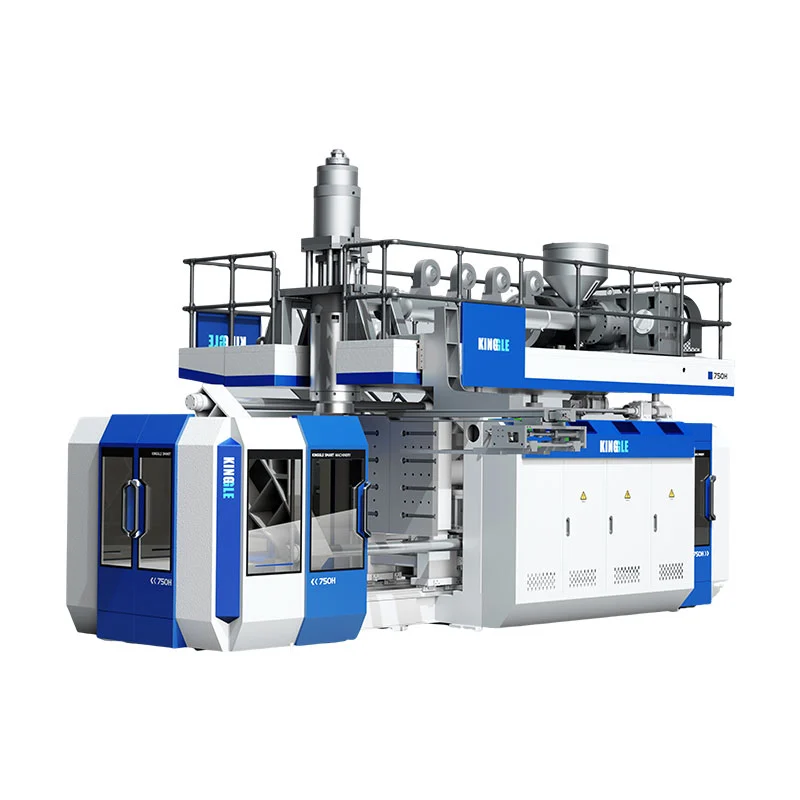

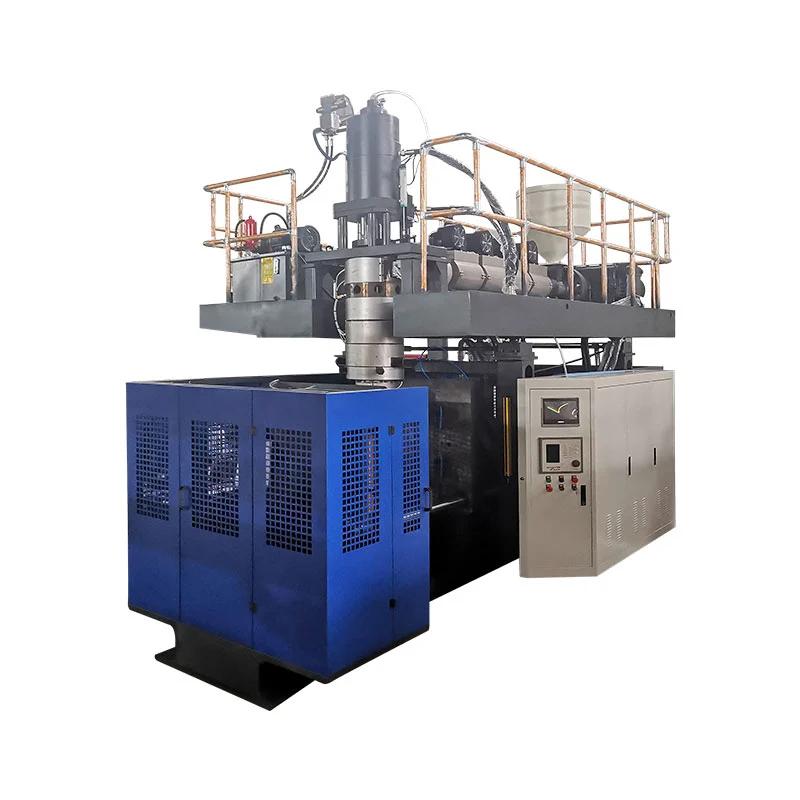

60L Accumulator Blow Molding Machine

Model:KGB90AP

For KGB90AP, an energy-efficient 60L accumulator blow molding machine featuring double layer or double color blow molding machine technology. It's specially designed for double-layer and double-color 60L blow molding machine applications, such as toolbox blow molding machines/ industrial storage tanks/ 60l containers, it ensures long-term reliability and cost savings.

Volume : 60LWeight : 15T

Send Inquiry

Product Description Specification Application

KGB90AP 60L accumulator blow molding machine have double extrusion system can fit double layer or double color production requirements to extend product rang.
Includes a MOOG 100 thickness controller, robot arm, and bottom blowing system, enhancing productivity and product quality. This versatile machine is ideal for various applications, including chemical drum blow molding machine solutions, plastic extrusion blow moulding machine processes,.

Features and Advantages

This model is a fixed mold opening and closing type, using a double tie rod synchronous mold closing mechanism, and the oil cylinder direct pressure clamping
Storage cylinder die head series
Maximum volume 60L
Suitable fotoolbox, etc.
Using unique technology, mold clamping pressurization system, large clamping force, fast mold clamping speed, short product cycle

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB90AP
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

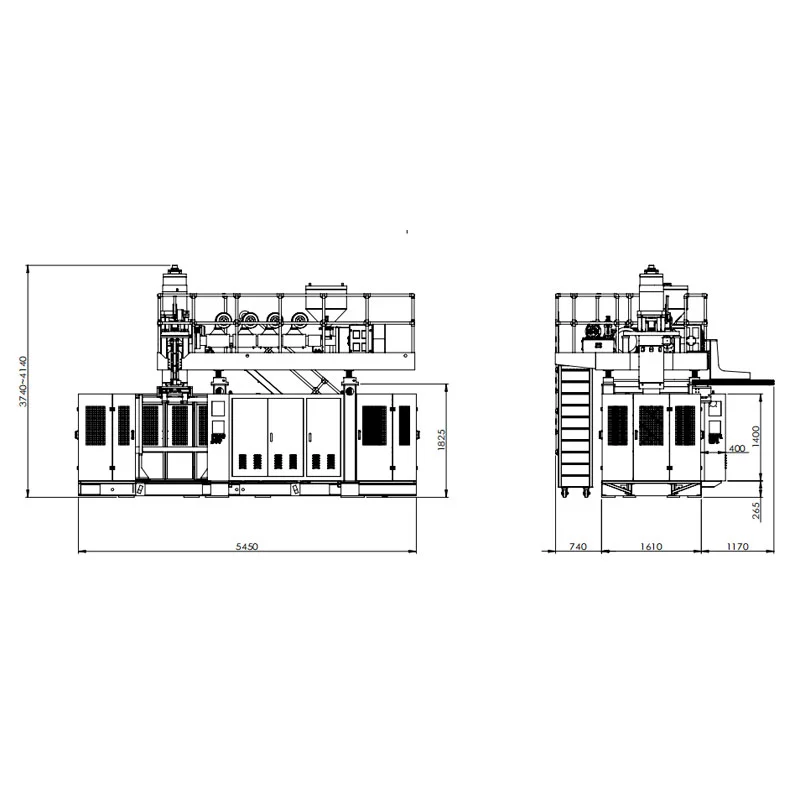

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	15T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen openingstroke	450 MM -1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM×980 MM
6	Mold thickness	460 MM -550 MM
Power
1	Servooil pump motor power	18.5 KW
2	Servo pump displacement	150 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW - 45 KW
Extruder unit
1	Screw diameter	2*70 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr - 160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fanpower	0.5 KW
7	Extruder motor power	2*22 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Maxdie-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
