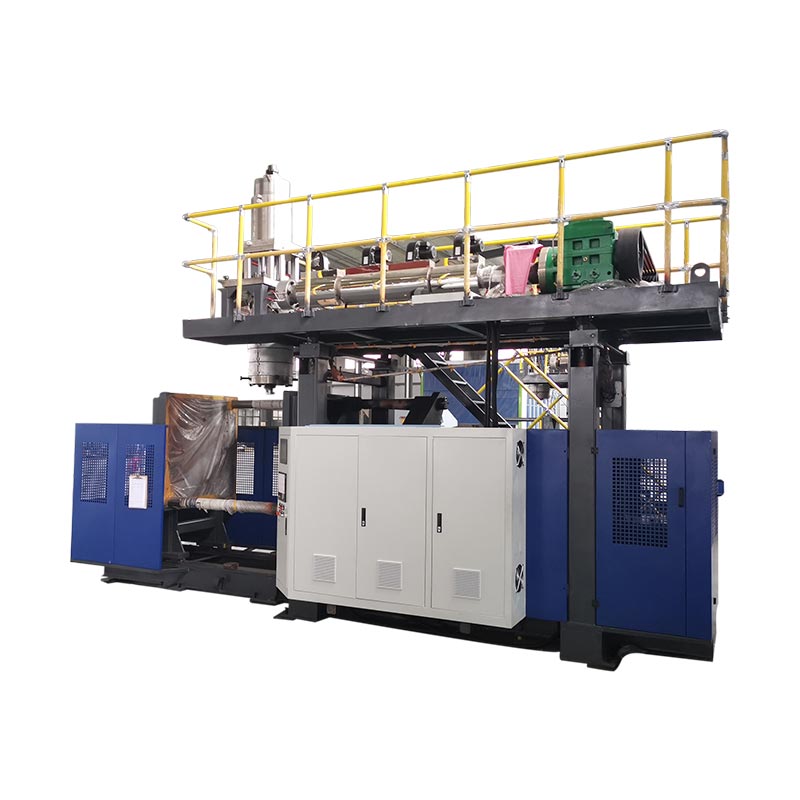

120L Accumulate Blow Molding Machine

The standard KGB100B model, a top-tier accumulator head blow molding machine, includes a MOOG 100 thickness controller, robot arm, and bottom blowing system, enhancing productivity and product quality. This 120L Accumulate Blow Molding Machine is suitable for various applications, including chemical drum blow molding machine solutions, float blow molding machine processes, and the production of chemical packaging barrels, car tanks, toys, auto parts, traffic barriers, medicine furniture, table blow molding machine applications, floating buoys, chairs, and tables. With a maximum blow molding production volume of 120L, it caters to a wide range of needs, from smaller containers to larger industrial applications.

Features and Advantages

Fixed Mold Opening and Closing Mechanism: Equipped with a double tie rod synchronous mold closing system, ensuring precise and stable mold alignment. The oil cylinder directly applies pressure for reliable mold locking.
Storage Cylinder Die Head Series: Designed for consistent material flow and high-quality product formation.
Large Capacity: Supports a maximum product volume of 120L, making it ideal for producing large-sized containers and industrial parts.
Hydraulic Servo System: Features advanced hydraulic servo control, delivering fast action response, high energy efficiency, and reduced operational costs.

FAQ

1. How much of accumulate model blow molding machine?

Due to product differences, the machine can have a robot arm/ bottom blowing system/ seal device, etc. Please share your product specification, then we provide a solution for reference.

2. How can I choose the right model?

For regular bottles/barrels etc. packages, just confirm the max volume of the machine. For other special products, need consider platen/ extrusion/ power etc., please contact us to get suitable solution.

3. Compare with other brand, why i choose KINGGLE blow molding machine?

Kinggle engaged in blow molding since 2008, our experience can support fresh customers to quickly establish production lines and achieve investment returns. Over the past 20 years, we have continuously developed and designed independently, achieving stable and efficient production.

4. What's your guarantee of the machine's quality?

We will high-intensity test machines before delivery to make sure the production is stable. And provide a 1-year warranty since machine arrive your factory. If needed, also can provide an SGS certificate.

5. Do you provide regular maintenance training or remote fault diagnosis?

Yes, we not only have maintenance files but also have technical documents/ videos to solve problems.
The machine program has an alarm system, which can remotely assist in troubleshooting problems

6. What's your after-sales service?

We can send engineer to your factory to help you install and train, the main components come with a 1-2 year warranty period, and fragile parts can be replaced for free within one year.

Specifications

Application Areas

max 120l chemical barrel/ auto parts/ traffic barrier/ float/ toys/ furniture
