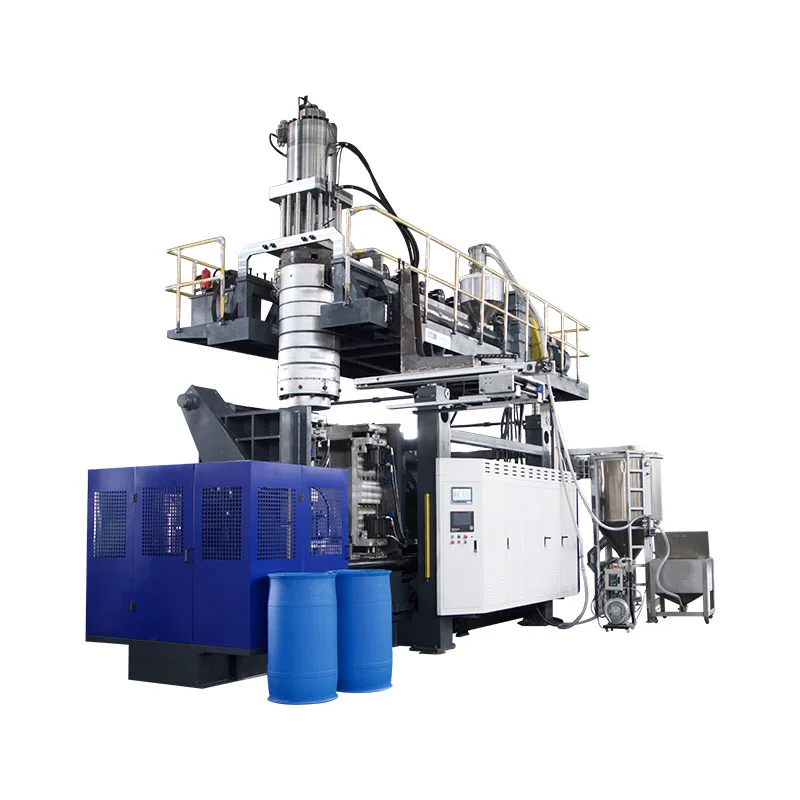

250L Accumulate Chemical Barrel Special Blow Molding Machine

Model:KGB200L/LP

This specialized 250L Accumulate Chemical Barrel Special Blow Molding Machine is specifically designed for producing high-quality 220L double-ring blue chemical barrels. Utilizing a fixed open-closing mechanism with an oblique arm double drawbar synchronous clamping system, it ensures stable and durable mold clamping.

Volume : 250LWeight : 39T

Send Inquiry

Product Description Specification Application

The patented double-layer, double-bestrow accumulator die head, combined with a high-performance extruder unit, delivers exceptional results. This chemical barrel blow molding machine incorporates a MOOG 100 thickness controller, robot arm, and bottom blowing system for enhanced efficiency. The produced drums meet stringent quality standards, including passing the 3-meter drop test and obtaining UN certification.

Features and Advantages

Double-enveloping horizontal bar center injection storage cylinder die head
● Achieving high production capacity through optimized design and precision manufacturing, capable of producing 17-20 pieces/hour
● The barrels produced can pass the 3M drop test and complete UN certification

200L barrel weight: 12-15 kg

Material: HMWHDPE

Thickness: 3.5-4 mm

This specialized chemical barrel blow molding machine is designed for efficient production of high-quality 220L double-ring blue chemical barrels. Utilizing a fixed open-closing mechanism, an oblique arm double drawbar synchronous clamping system, and a patented double-layer, double-bestrow accumulator die head, it delivers exceptional performance.

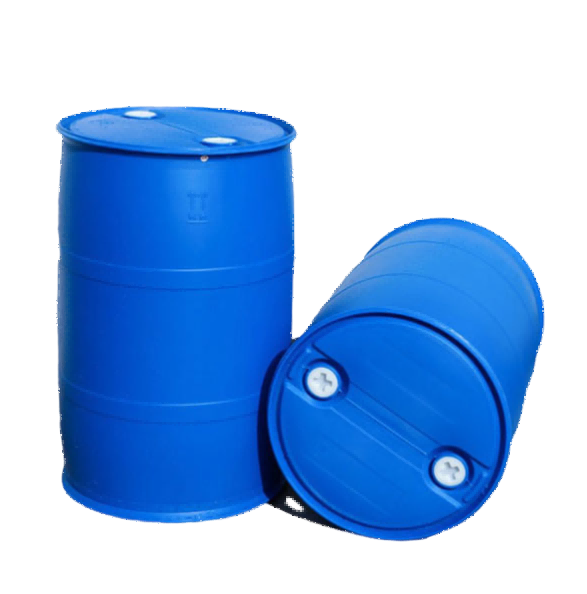

Double layer 220L double-ring chemical barrel blow molding machine

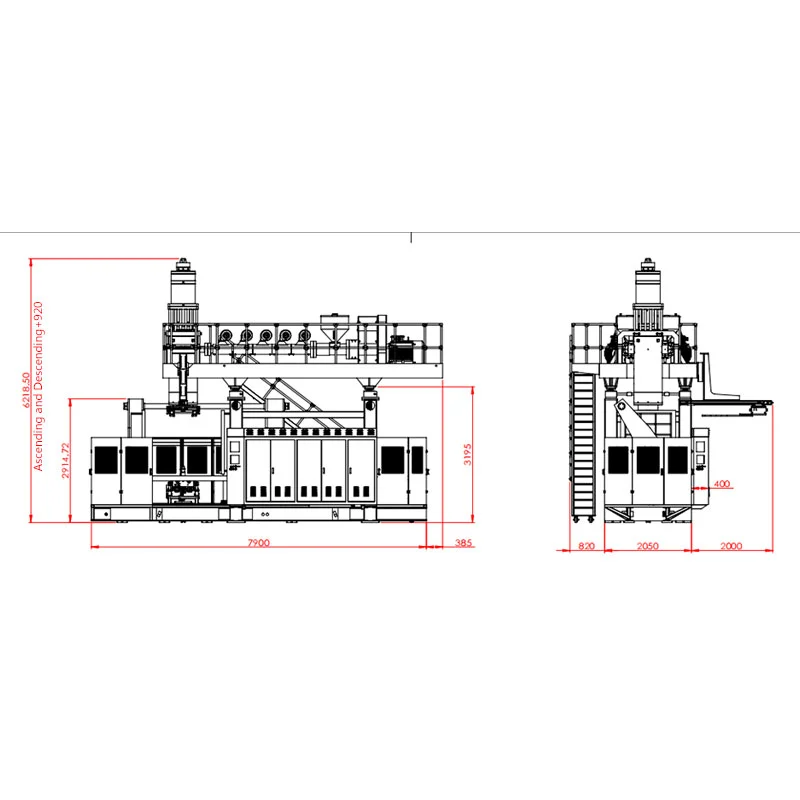

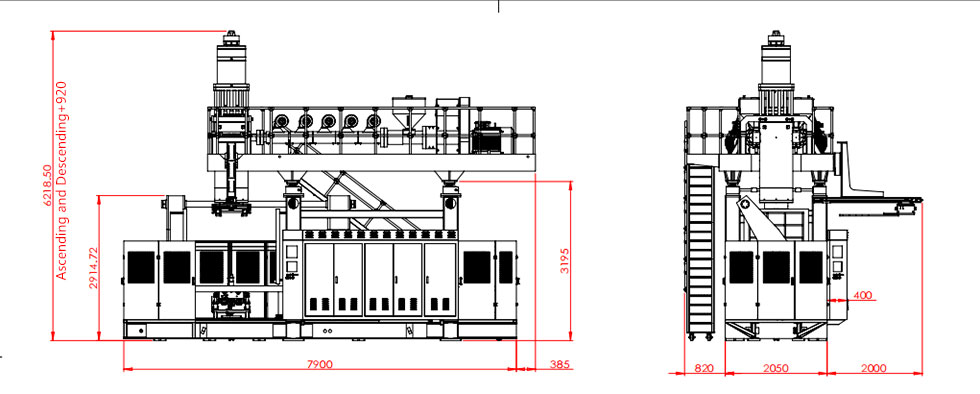

Drawing

250L accumulate chemical barrel special blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGB200L/LP
Specifications
1	Max container capacity	250 L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	9.5 M x 4.1 M x 6.5 M
4	Machine weight	39 T
Clamping Unit
1	Clamping force	760 KN
2	Mold platen size(W×H)	1300 MM x 1500 MM
3	Platen opening stroke	800 MM - 1800 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1100 MM×1700 MM
6	Mold thickness	810 MM-950 MM
Power
1	Servo oil pump motor power	37 KW + 22 KW
2	Servopump displacement	200 L/MIN + 138 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1.8 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW- 80 KW
Extruder unit
1	Screw diameter	100 MMx2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	25 L
5	(PE)Accumulator weight	18 KG
