1000L IBC Water Tanks Accumulate Blow Molding Machine

Model:KGB1000L- IBC

Experience the strength and stability of the KGB1000L IBC Water Tanks Accumulate Blow Molding Machine, featuring an overall weight exceeding 55 tons to minimize vibration and displacement. The diagonal double tie rods and central three-cylinder clamping ensure even stress distribution across the mold, enhancing production accuracy.

Volume : 1000LWeight : 55T

Send Inquiry

Product Description Specification Application

This 1000L IBC Water Tanks Accumulate Blow Molding Machine incorporates advanced blowing technology principles and multi-layer production for reduced costs and improved product durability. Ideal for producing large-capacity containers, including water tank blow molding machine applications, this machine is specifically designed for IBC drums up to 1000L, making it suitable for producing chemical packaging drums, large-size car oil tanks, and more. Contact us today for a customized quote and explore our competitive water tank molding machine price.

Features and Advantages

The overall equipment can reach more than 55 tons, effectively reducing vibration and machine displacement, and improving production accuracy and stability.
● Diagonal double tie rods and central three-cylinder mold clamping, the template is more evenly stressed and not easily deformed
● Multi-layer production reduces production costs and improves product durability
● Suitable for the manufacturing of large plastic products such as water towers, storage tanks, chemical containers, etc.

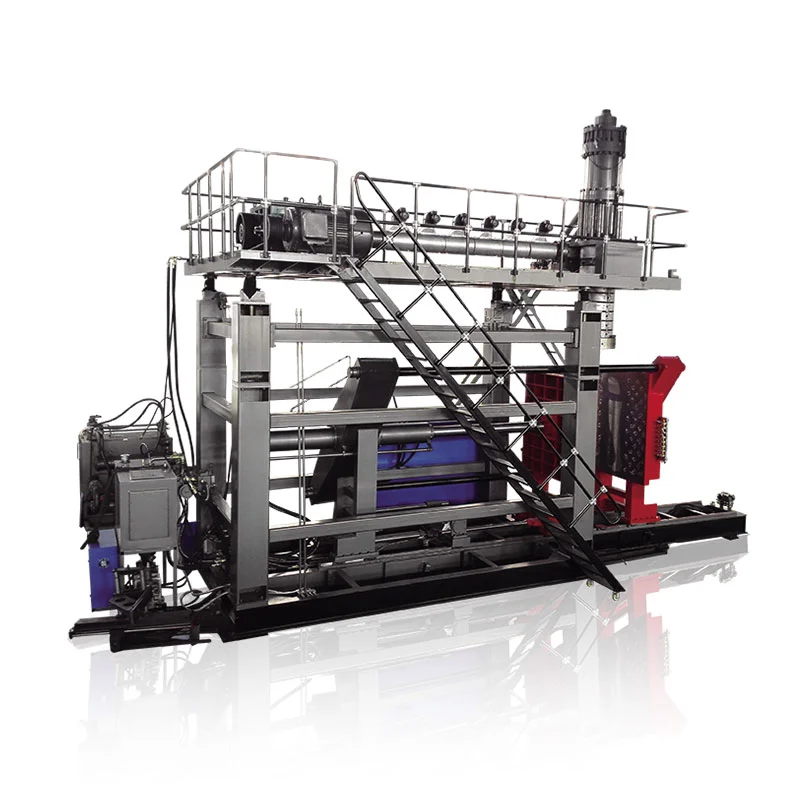

1000L IBC water tanks accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGS1000L-IBC
Specifications
1	Max container capacity	1000 L
2	Output(dry Cycle)	150 L

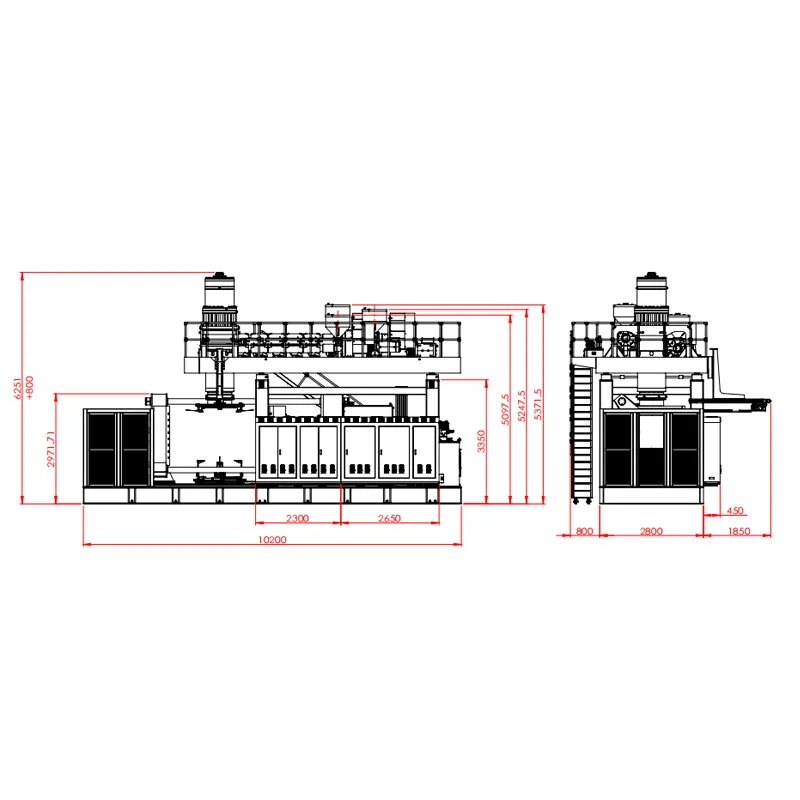

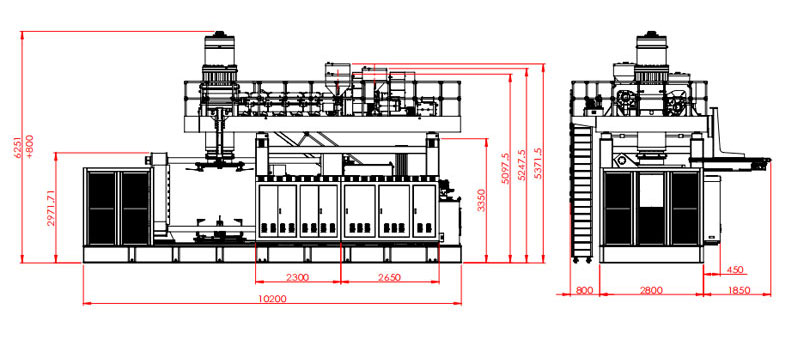

3	Machine Dimension(L×W×H)	9.5 M x 5.1 M x 6.5 M
4	Machine weight	55 T
Clamping Unit
1	Clamping force	1000 KN
2	Mold platen size(W×H)	1800 MM x 1600 MM
3	Platen opening stroke	1150 MM - 2700 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1600 MM x 1500 MM
6	Mold thickness	1200 MM - 1400 MM
Power
1	Servo oil pump motor power	25 KW
2	Servopump displacement	250 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	2 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	110 KW - 150 KW
Extruder unit
1	Screw diameter	100 MM x 2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	45 L
5	(PE)Accumulator weight	33 KG
