220 Litre Plastic Drum Blow Molding Machine

Model:KGB200L

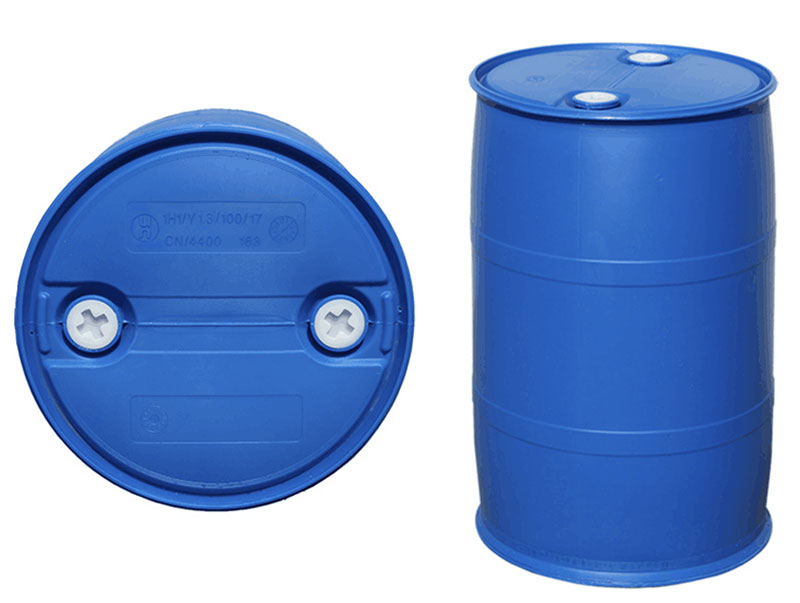

The KGB200L is a precision-engineered 220 litre plastic drum blow molding machine, optimized for blue chemical drum-making machine applications. For 200 litre plastic drum blow molding machine needs, such as chemical and industrial drums, it ensures high chemical resistance and structural integrity. Can pass 3 meter drop test to get UN certificate.

Volume : 250LWeight : 36T

Send Inquiry

Product Description Specification Application

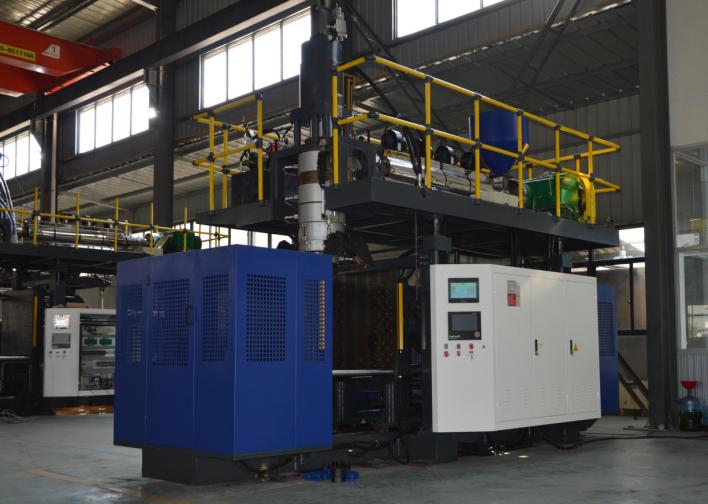

The accumulator die head, combined with a high-performance extruder unit, delivers exceptional results. This 220 Litre Plastic Drum Blow Molding Machine incorporates a MOOG 100 thickness controller, robot arm, and bottom blowing system for enhanced efficiency. The produced drums meet stringent quality standards, including passing the 3-meter drop test and obtaining UN certification.

Features and Advantages

Double-enveloping horizontal bar center injection storage cylinder die head
Achieving high production capacity through optimized design and precision manufacturing, capable of producing18 pieces/hour

Specifications

serial number	Material PE、PP、ABS、HMWHDPE...	Specialized Machine Series
serial number	Material PE、PP、ABS、HMWHDPE...	Machine model:KGB200L
Specifications
1	Max container capacity	250L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	9.5 M x 4.1 M×6.5 M
4	Machine weight	36T
Clamping Unit
1	Clamping force	760 KN
2	Mold platen size(W×H)	1300 MM x1500 MM
3	Platen openingstroke	800 MM -1800 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1100 MM ×1700 MM
6	Mold thickness	810 MM - 950 MM
Power
1	Servooil pump motor power	37 KW + 22 KW
2	Servo pump displacement	200 L/MIN +138 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1.8 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW - 80 KW
Extruder unit
1	Screw diameter	120 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	320 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	110(132) KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Maxdie-pin diameter	450 MM
4	Accumulator capacity	25 L
5	(PE)Accumulator weight	18 KG
